Nissan Rogue Service Manual: Heated seat system

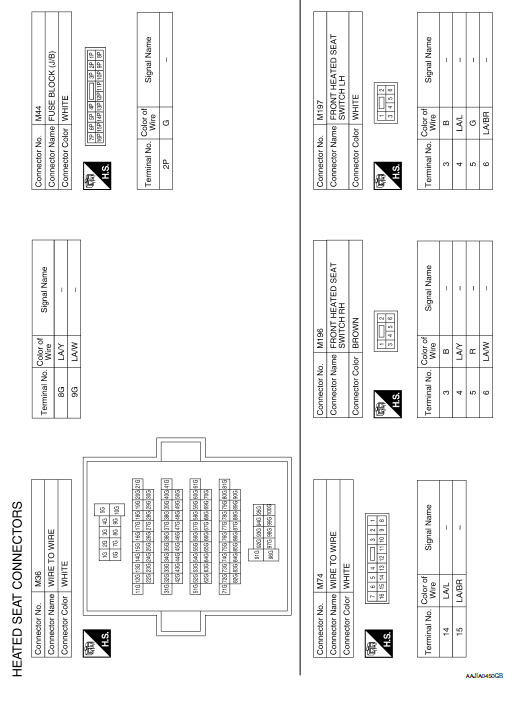

Wiring Diagram

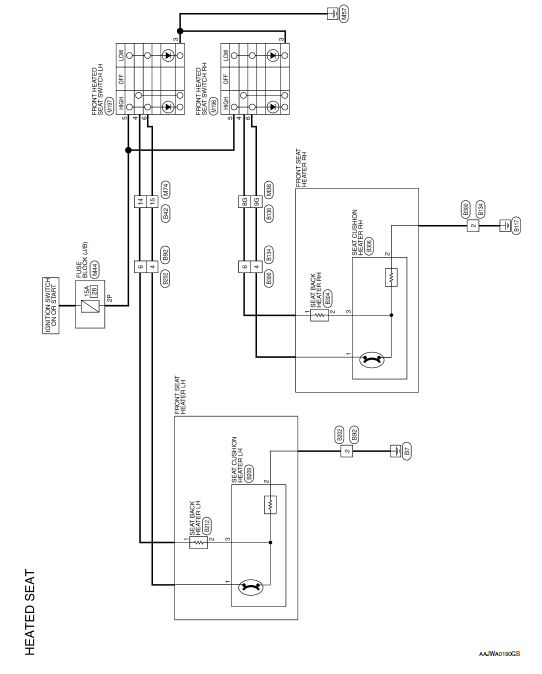

Wiring Diagram

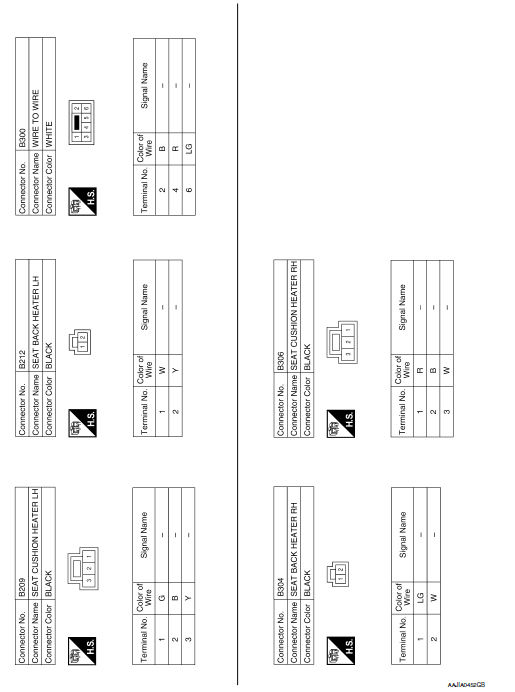

Wiring Diagram

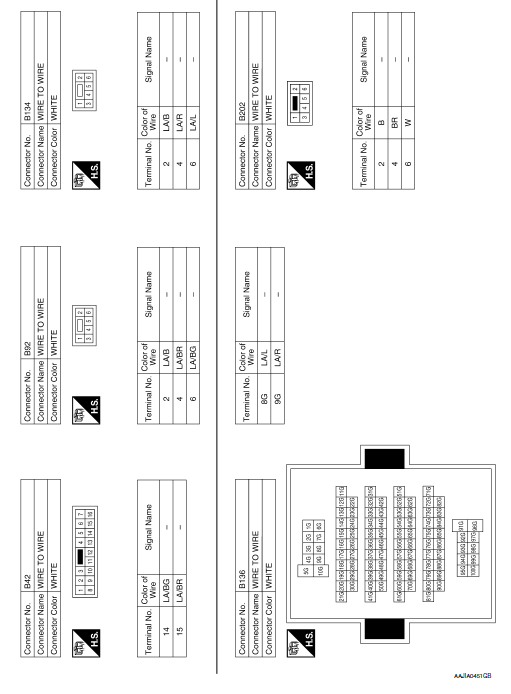

Wiring Diagram

Wiring Diagram

Lumbar support system
Wiring Diagram ...

Symptom diagnosis
SQUEAK AND RATTLE TROUBLE DIAGNOSES Work Flow CUSTOMER INTERVIEW Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diagnostic Workshee ...

Other materials:

Meter control switch signal circuit
Diagnosis Procedure Regarding Wiring Diagram information, refer to MWI-32, "Wiring Diagram". 1.CHECK METER CONTROL SWITCH SIGNAL  Turn ignition switch ON.  Check voltage between the following terminals of the meter control switch harness connector M3. Is the ins ...

C1109 power and ground system
DTC Logic DTC DETECTION LOGIC DTC Display Item Malfunction detected condition Possible causes C1109 BATTERY VOLTAGE [ABNORMAL] When ignition voltage is 10 V or less.  When ignition voltage is 16 V or more. Harness or connector ...

Interior room lamp power supply circuit
Description Provides the interior room lamp power supply. Also cuts the power supply when the interior room lamp battery saver is activating. Component Function Check 1.CHECK INTERIOR ROOM LAMP POWER SUPPLY FUNCTION CONSULT ACTIVE TEST  Turn power switch ON.  Turn each interio ...
