Nissan Rogue Service Manual: Front wiper motor
Removal and Installation
REMOVAL
- Remove the front drive assembly. Refer to WW-66, "Removal and Installation".

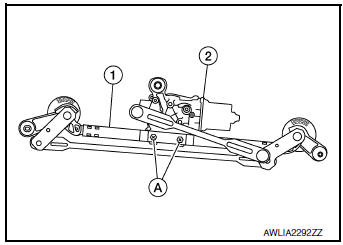

- Remove the bolts (A) from the front wiper drive assembly (1) and the front wiper motor (2).

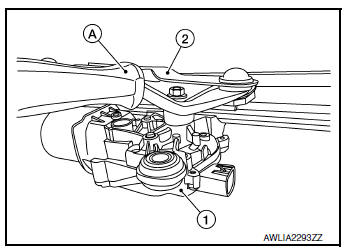

- Separate the wiper motor (1) from the front wiper drive assembly (2) using suitable tool (A).
- Remove the front wiper drive assembly.
INSTALLATION
Installation is in the reverse order of removal.
Front wiper drive assembly
Exploded View
REMOVAL
Cowl top
Front wiper drive assembly
Removal and Installation
REMOVAL
Remove cowl top cover. Refer to EXT-25, "Removal and
Installation".
...
Wiper and washer switch
Removal and Installation
The wiper and washer switch is serviced as a part of the combination switch.
Refer to BCS-76, "Removal and
Installation". ...
