Nissan Rogue Service Manual: Front and rear washer motor

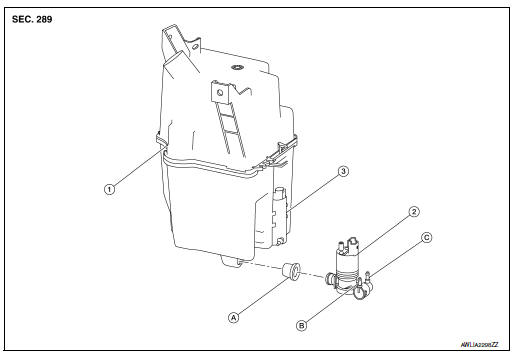

Exploded View
- Washer tank
- Front and rear washer motor
- Rear view camera washer motor
- Seal
- Rear washer outlet
- Front washer out
Removal and Installation
REMOVAL
- Drain washer fluid.
- Remove front fender protector (RH). Refer to EXT-28, "FENDER PROTECTOR : Exploded View".
- Disconnect harness connector from front and rear washer motor.
- Disconnect front and rear washer outlet tubes.
- Remove front and rear washer motor from washer tank.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
- Add water up to the top of washer tank inlet after installing. Check that no leaks exist.
- Fill washer tank with specified amount of fluid. Refer to WW-75, "Specifications".
Washer tank
Exploded View
Cap
Washer tank
Washer tank inlet
Clip
Removal and Installation
REMOVAL
Drain washer fluid.
Using a suitable tool release washer tank in ...
Washer fluid level switch
Removal and Installation
The washer fluid level switch is serviced as a part of the washer tank. Refer
to WW-56, "Removal and Installation". ...
