Nissan Rogue Service Manual: ECU diagnosis information

AV CONTROL UNIT

Reference Value

VALUES ON THE DIAGNOSIS TOOL

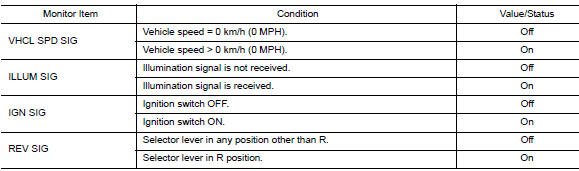

Values on the diagnosis tool

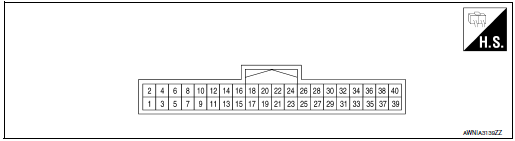

TERMINAL LAYOUT

Terminal layout

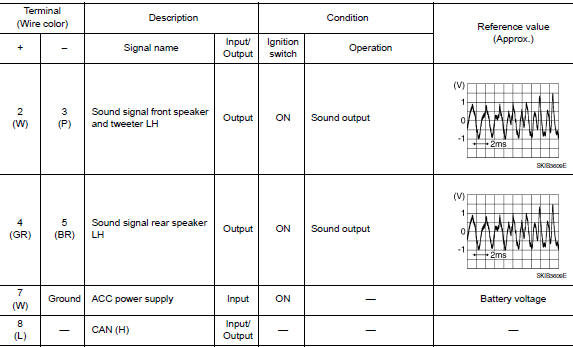

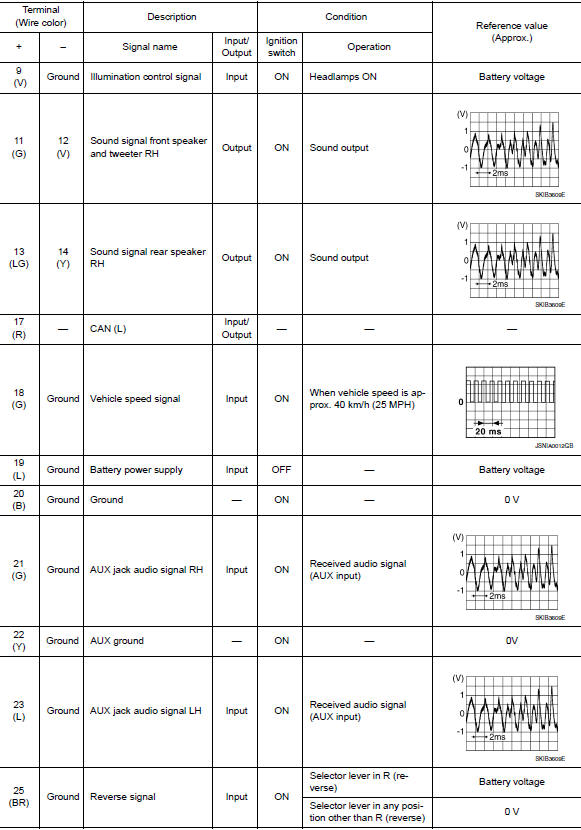

PHYSICAL VALUES

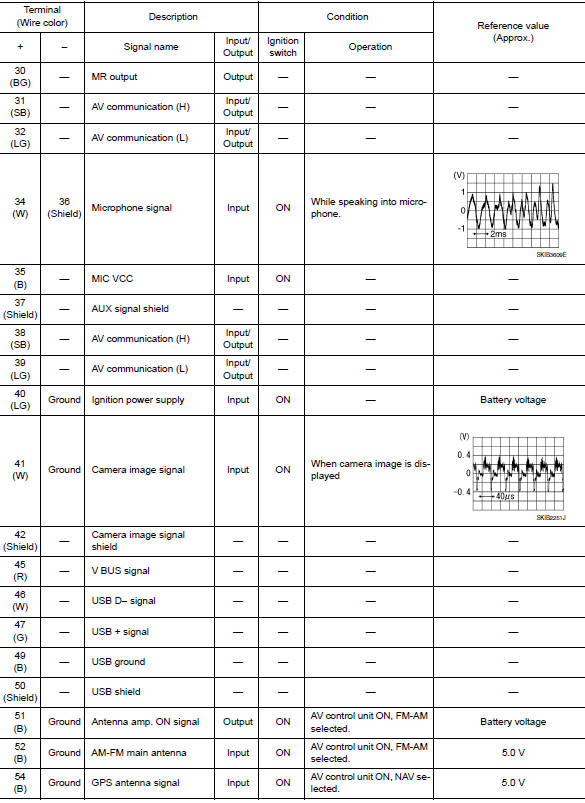

Physical values

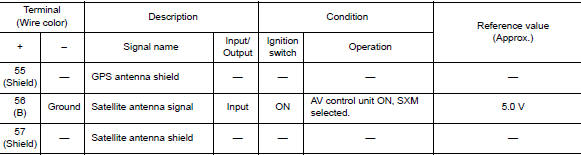

Physical values

Physical values

Physical values

DTC Index

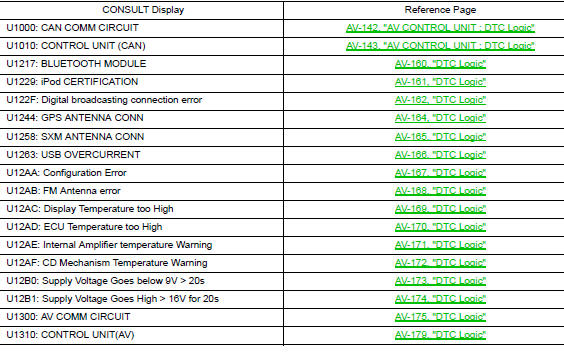

DTC Index

AROUND VIEW MONITOR CONTROL UNIT

WITHOUT DRIVER ASSISTANCE SYSTEM

WITHOUT DRIVER ASSISTANCE SYSTEM : Reference Value

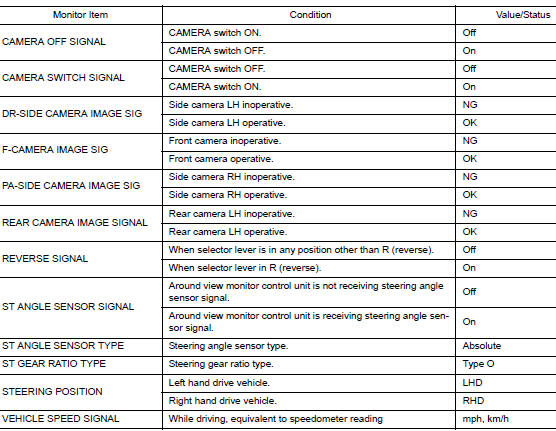

VALUES ON THE DIAGNOSIS TOOL

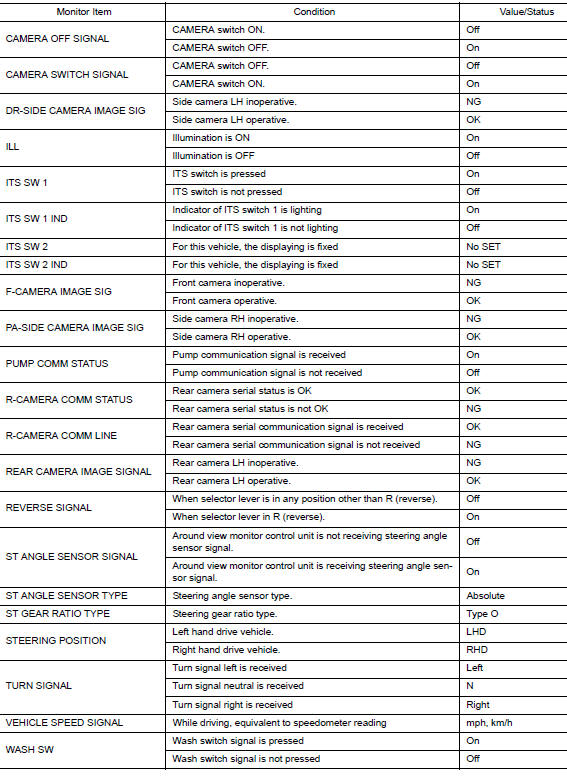

Values on the diagnosis tool

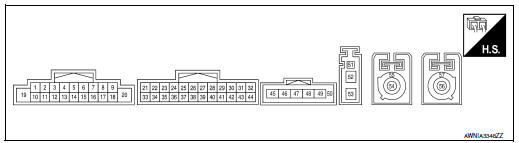

TERMINAL LAYOUT

Terminal layout

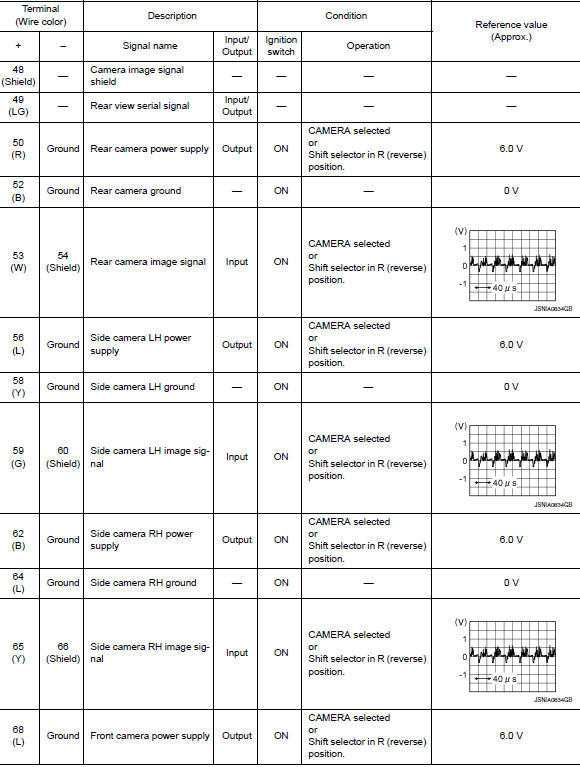

PHYSICAL VALUES

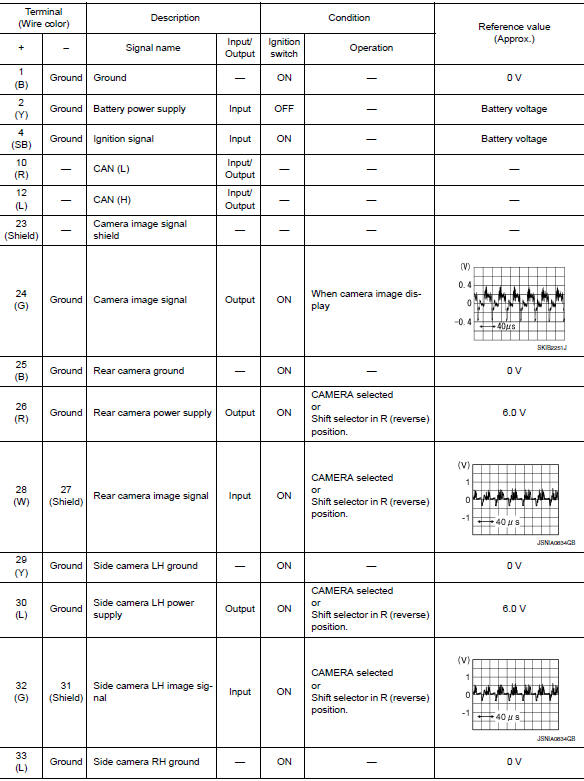

Physical values

Physical values

WITHOUT DRIVER ASSISTANCE SYSTEM : DTC Index

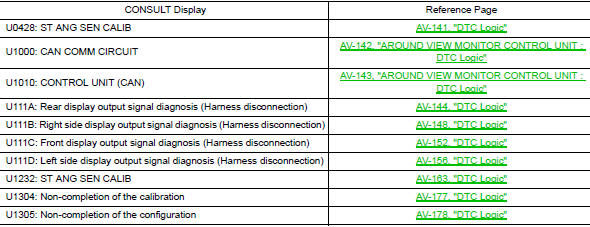

DTC Index

WITH DRIVER ASSISTANCE SYSTEM

WITH DRIVER ASSISTANCE SYSTEM : Reference Value

VALUES ON THE DIAGNOSIS TOOL

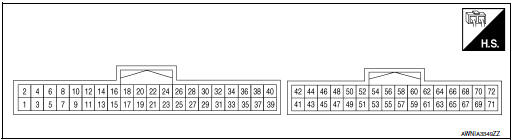

TERMINAL LAYOUT

PHYSICAL VALUES

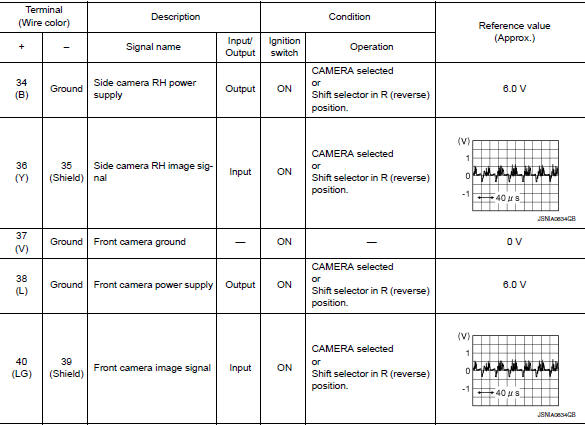

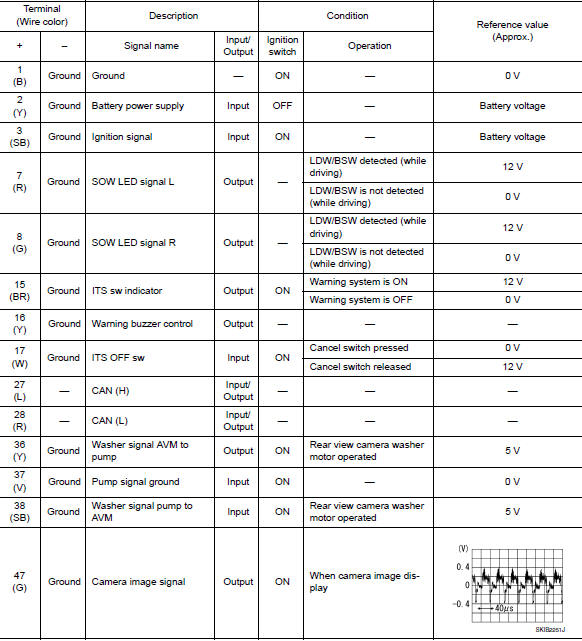

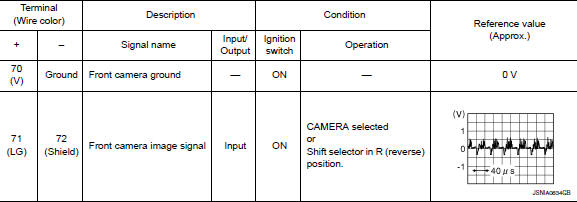

Physical values

Physical values

Physical values

WITH DRIVER ASSISTANCE SYSTEM : DTC Index

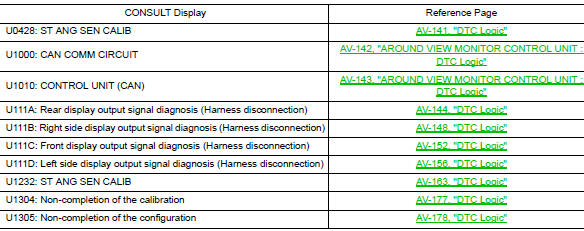

DTC Index

System description
COMPONENT PARTS Component Parts Location Center of back door View with glove box removed No Component Function 1 Rod antenna Refer to AV-232, &qu ...

Wiring diagram
NAVIGATION WITHOUT BOSE Wiring Diagram ...
