Nissan Rogue Service Manual: Ducts and grilles

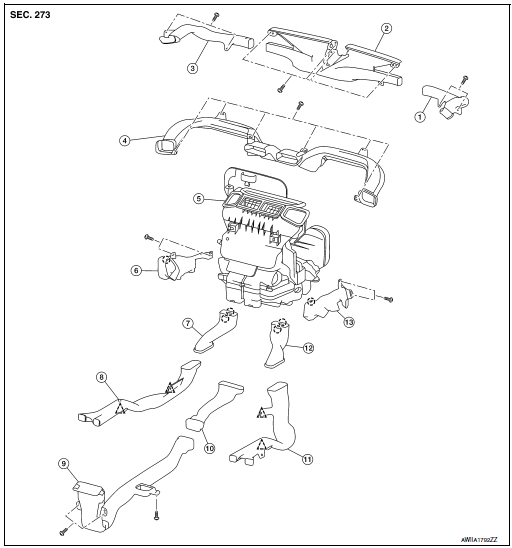

Exploded View

1. Side defroster duct (RH)
2. Defroster nozzle
3. Side defroster duct (LH)
4.  Center ventilator duct
5. Heating and cooling unit assembly
6.  Front foot duct (LH)
7. Front floor connecting duct (LH)
8. Front floor duct (LH)
9. Rear center ventilator duct
10. Adaptor duct 11. Front floor duct (RH)
11. Front floor connecting duct (RH)
12. Front foot duct (RH)

DEFROSTER NOZZLE

DEFROSTER NOZZLE : Removal and Installation

REMOVAL

1. Remove side defroster ducts (LH/RH). Refer to VTL-9, "SIDE DEFROSTER DUCT : Removal and Installation".

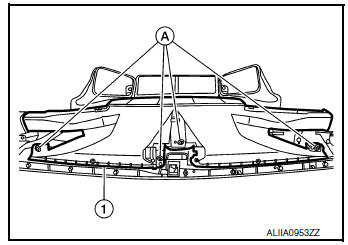

2.  Remove screws (A) and defroster nozzle (1).

INSTALLATION

Installation is in the reverse order of removal.

SIDE DEFROSTER DUCT

SIDE DEFROSTER DUCT : Removal and Installation

REMOVAL

1.  Remove the instrument panel assembly. Refer to IP-14, "INSTRUMENT PANEL ASSEMBLY : Removal and Installation".
2. Remove the screws (A) and the side defroster duct (1).

   NOTE: LH side shown; RH similar.

INSTALLATION

Installation is in the reverse order of removal.

CENTER VENTILATOR DUCT

CENTER VENTILATOR DUCT : Removal and Installation

REMOVAL

1.  Remove instrument panel assembly. Refer to IP-14, "INSTRUMENT PANEL ASSEMBLY : Removal and Installation".

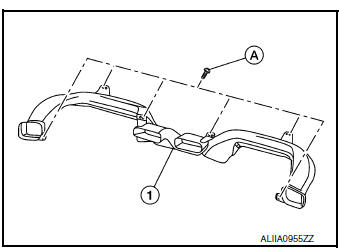

2. Remove screws (A) and center ventilator duct (1).

INSTALLATION

Installation is in the reverse order of removal.

FRONT FOOT DUCT

FRONT FOOT DUCT : Removal and Installation

REMOVAL

Front foot duct (LH)

1.  Remove instrument lower panel LH. Refer to IP-22, "Removal and Installation"

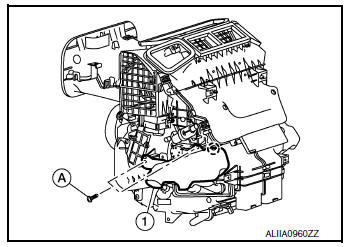

2.  Remove front foot duct (LH) screws (A).
3. Release the pawl and remove front foot duct (LH) (1).

: Pawl

Front foot duct (RH)

1.  Remove glove box assembly. Refer to IP-23, "Removal and Installation".

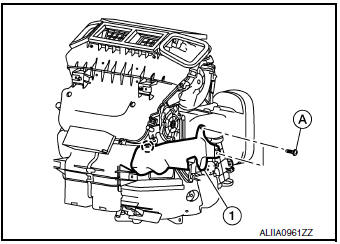

2.  Remove front foot duct (RH) screws (A).
3.  Release the pawl and remove front foot duct (RH) (1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

FRONT FLOOR DUCT

FRONT FLOOR DUCT : Removal and Installation - Front Floor Connecting Duct

REMOVAL

1.  Remove the center console side finisher. Refer to IP-18, "Exploded View".
2.  Release the pawls and remove front floor connecting duct (1).

: Pawl

NOTE: LH side shown; RH similar.

INSTALLATION

Installation is in the reverse order of removal.

FRONT FLOOR DUCT : Removal and Installation - Front Floor Duct

REMOVAL

1.  Partially remove front floor trim.
2.  Remove front floor duct screws.

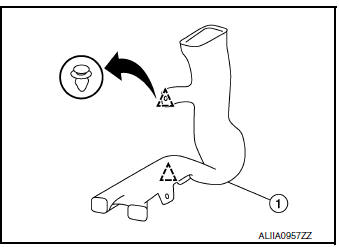

3.  Release clips using a suitable tool and remove front foot duct (1).

: Clip

NOTE: RH side shown; LH similar.

INSTALLATION

Installation is in the reverse order of removal.

ADAPTOR DUCT

ADAPTOR DUCT : Removal and Installation

REMOVAL

1.  Remove inside key antenna (instrument center). Refer to DLK-271, "INSTRUMENT CENTER : Removal and Installation".
2. Remove shift selector finisher. Refer to IP-18, "Exploded View".
3.  Remove the adaptor duct.

INSTALLATION

Installation is in the reverse order of removal.

REAR CENTER VENTILATOR DUCT

REAR CENTER VENTILATOR DUCT : Removal and Installation

REMOVAL

1.  Remove center console assembly. Refer to IP-18, "Removal and Installation".
2. Remove screws (A) and rear center ventilator duct (1).

INSTALLATION

Installation is in the reverse order of removal.

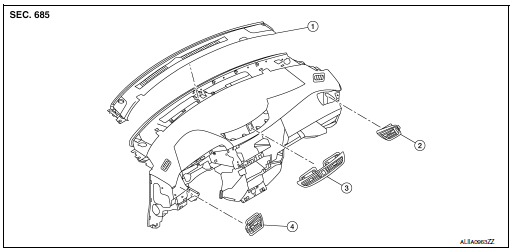

Exploded View

1. Defroster grille
2. Side ventilator grille (RH)
3. Center ventilator grille
4. Side ventilator grille (RH)

DEFROSTER GRILLE

DEFROSTER GRILLE : Removal and Installation

REMOVAL

1. Remove front pillar finishers (LH/RH). Refer to INT-20, "FRONT PILLAR FINISHER : Removal and Installation".
2. Release defroster grille clips using a suitable tool.
3. Disconnect the harness connectors and remove defroster grille.

INSTALLATION

Installation is in the reverse order of removal.

CENTER VENTILATOR GRILLE

CENTER VENTILATOR GRILLE : Removal and Installation

REMOVAL

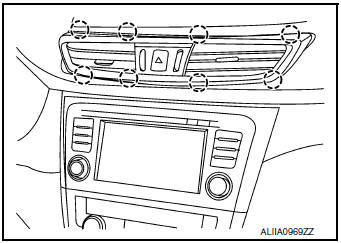

1.  Release the pawls using a suitable tool, disconnect the harness connector and remove center ventilator grille assembly from instrument panel.

: Pawl

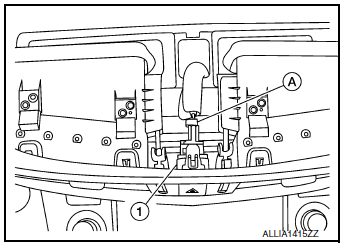

2. Disconnect the harness connector (A) from hazard switch (1).

3. Release the pawls to remove the center ventilator grilles (LH/ RH).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

SIDE VENTILATOR GRILLE

SIDE VENTILATOR GRILLE : Removal and Installation

REMOVAL

Side ventilator grille (LH)

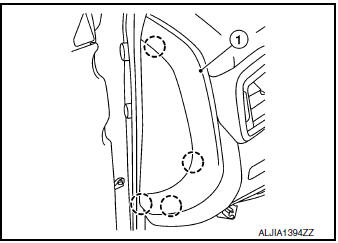

1. Release the pawls using a suitable tool and remove instrument side finisher (LH) (1).

: Pawl

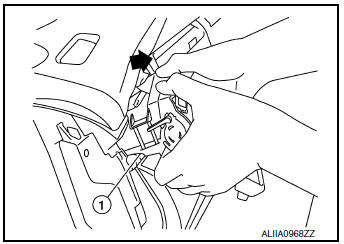

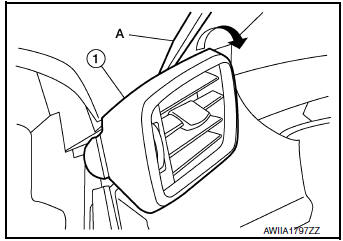

2. Insert a suitable tool (A) at the top of the side ventilator grille (1) and release as shown.

3. Remove side ventilator grille (1) in the direction shown ( ).

Side ventilator grille (RH)

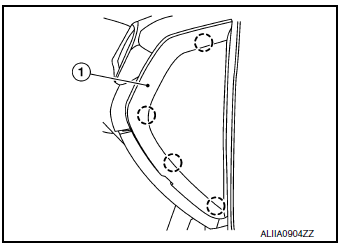

1. Release the pawls using a suitable tool and remove instrument side finisher (1).

: Pawl

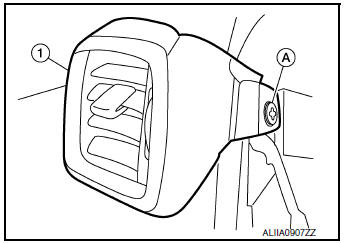

2. Remove side ventilator grille (RH) screw (A).

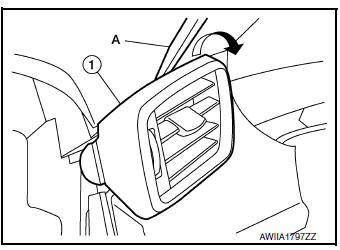

3. Insert a suitable tool (A) at the top of the side ventilator grille (1) and release as shown.

4. Remove side ventilator grille (1) in the direction shown ( ).

INSTALLATION

Installation is in the reverse order of removal.

REAR CENTER VENTILATOR GRILLE

REAR CENTER VENTILATOR GRILLE : Removal and Installation

REMOVAL

1.  Remove center console rear finisher. Refer to IP-18, "Exploded View".

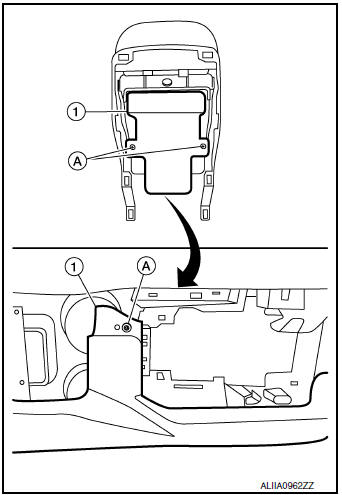

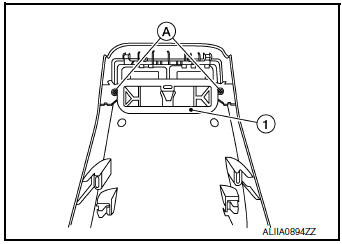

2.  Remove screws (A) and rear center ventilator grille (1).

INSTALLATION

Installation is in the reverse order of removal.
