Nissan Rogue Service Manual: Combination meter

Reference Value

VALUES ON THE DIAGNOSIS TOOL

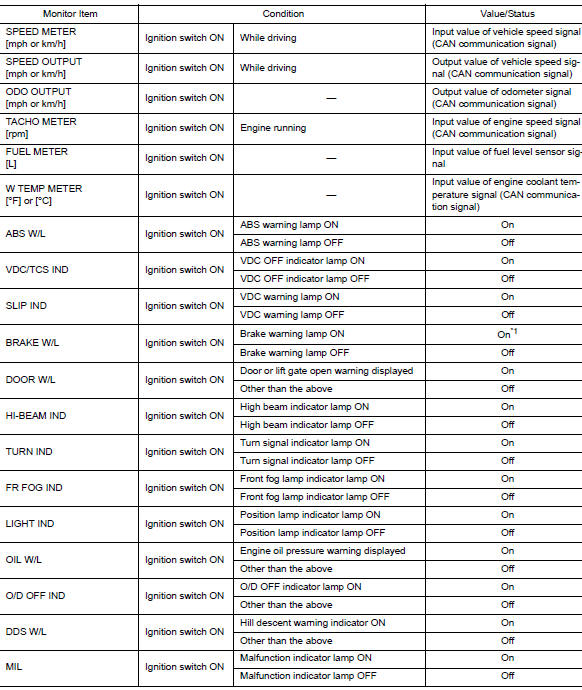

Values on the diagnosis tool

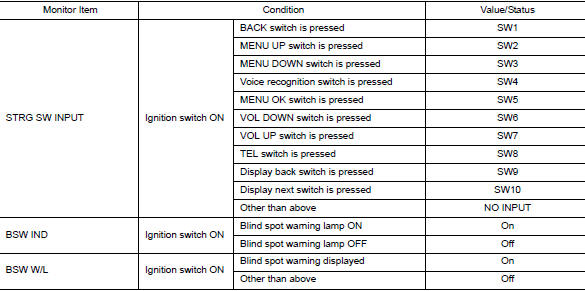

Values on the diagnosis tool

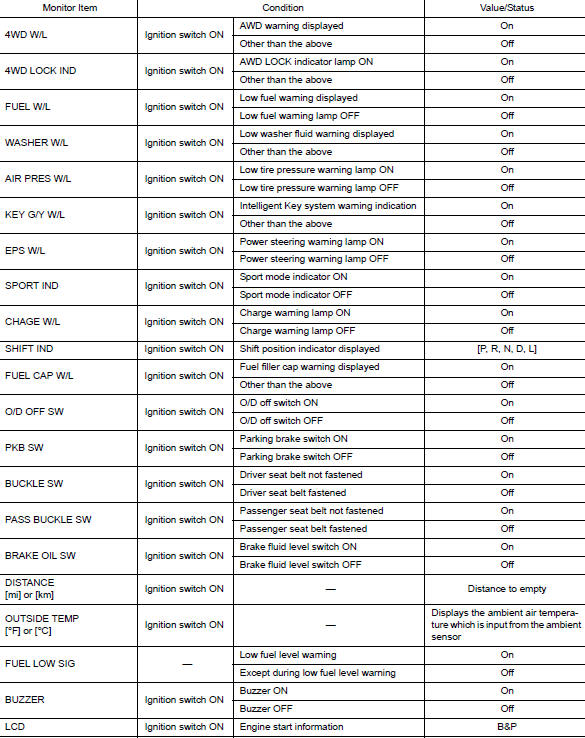

Values on the diagnosis tool

*: DDS (hill descent control)

NOTE: Some items are not available according to vehicle specification.

TERMINAL LAYOUT

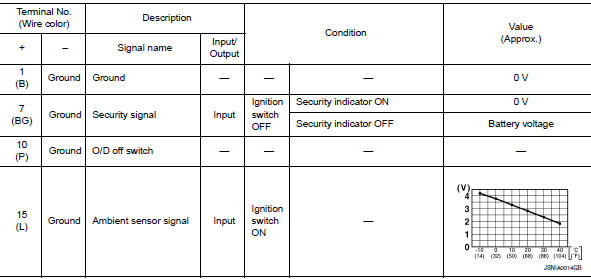

Terminal layout

PHYSICAL VALUES

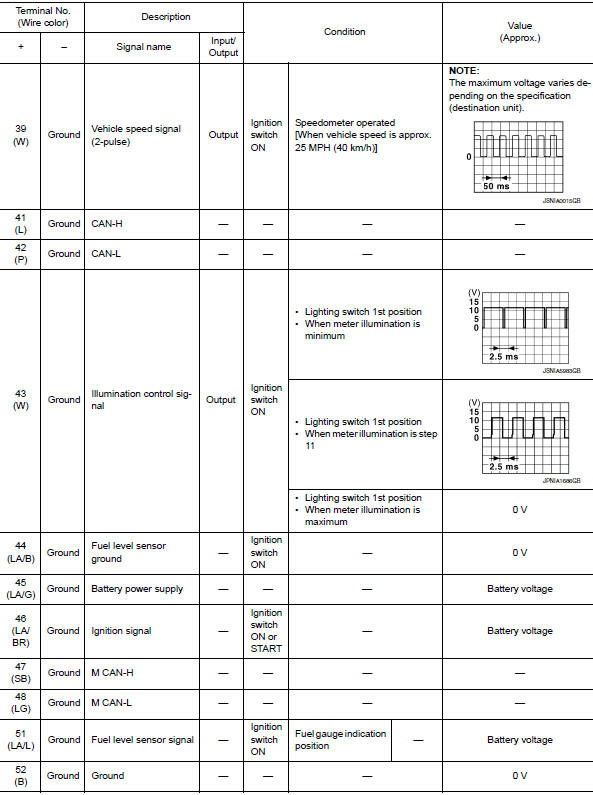

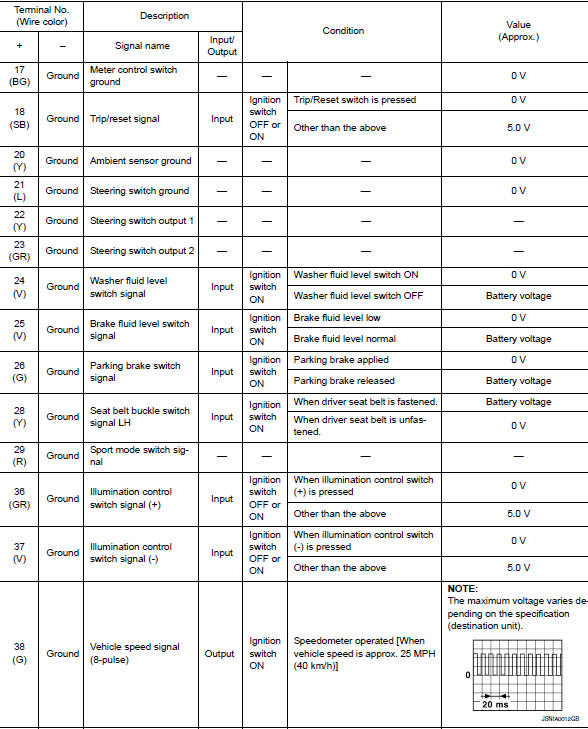

Physical values

Physical values

Physical values

Fail-safe

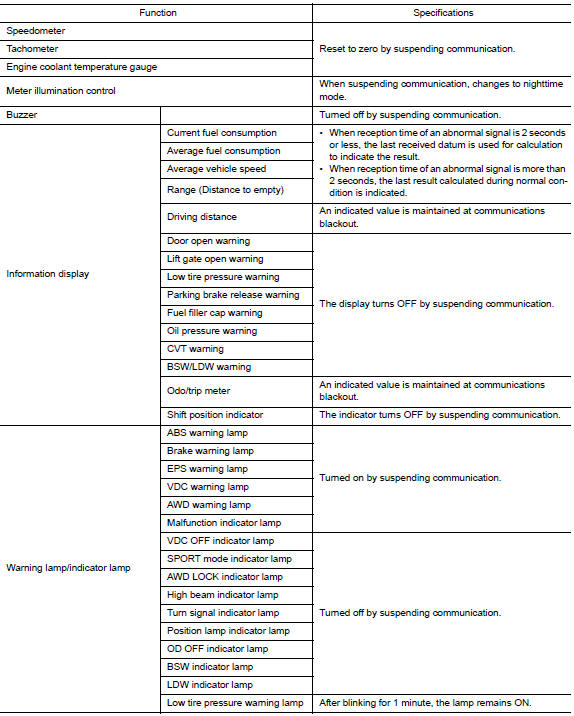

The combination meter activates the fail-safe control if the CAN communication lines between each unit are malfunctioning

Fail-safe

DTC Index

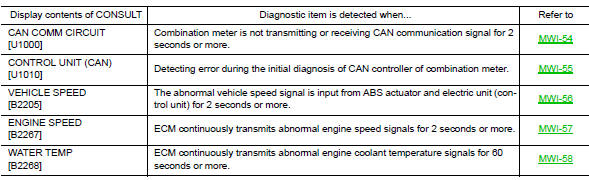

DTC Index

ECU diagnosis information
...

BCM (body control module)
List of ECU Reference ...
