Nissan Rogue Service Manual: Back door finisher

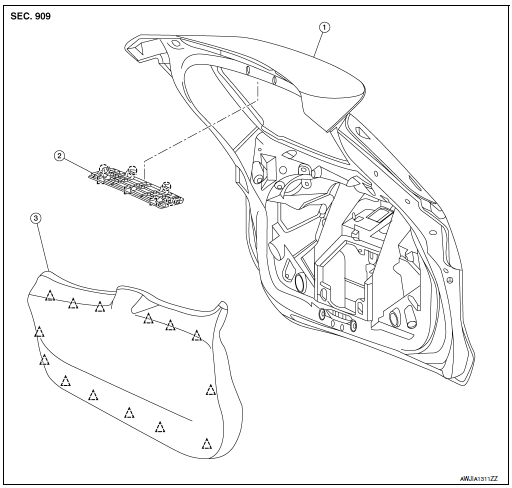

Exploded View
- Back door
- Access cover
- Back door finisher
Clip
Pawl
Metal clip
Removal and Installation
REMOVAL
Using a suitable tool (A) release upper LH most clip, then release remaining clips by gently pulling down on back door finisher (1).
: Clip
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: When installing back door finisher, check that clips are securely placed in door panel holes.
