Nissan Rogue Service Manual: Wiring diagram

REAR WINDOW DEFOGGER SYSTEM

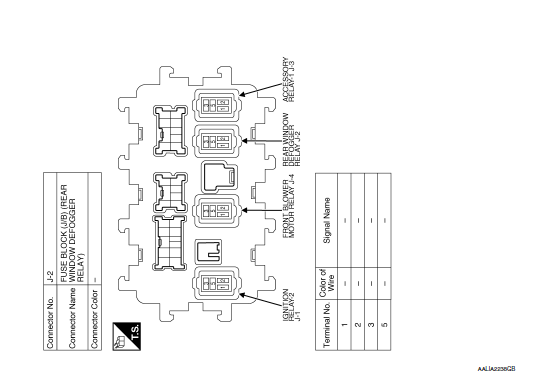

Wiring Diagram

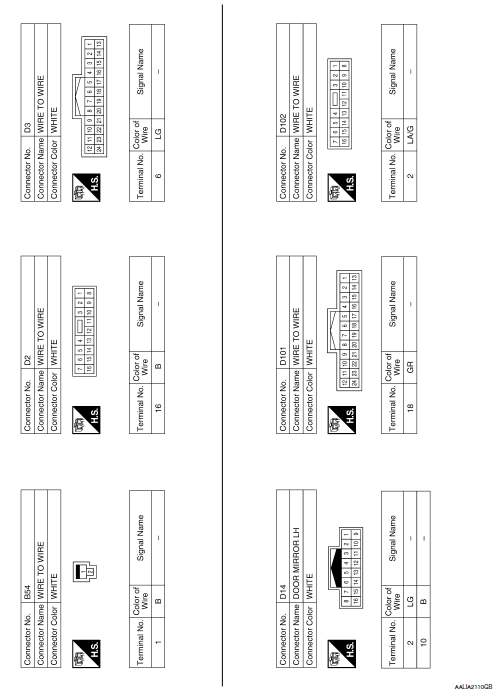

Wiring Diagram

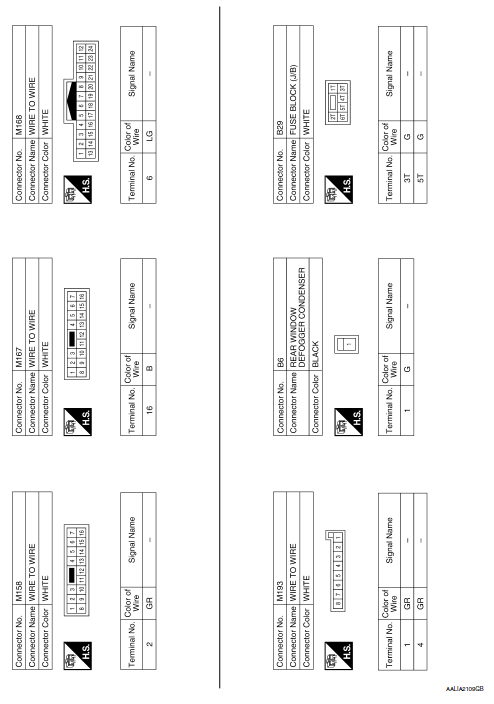

Wiring Diagram

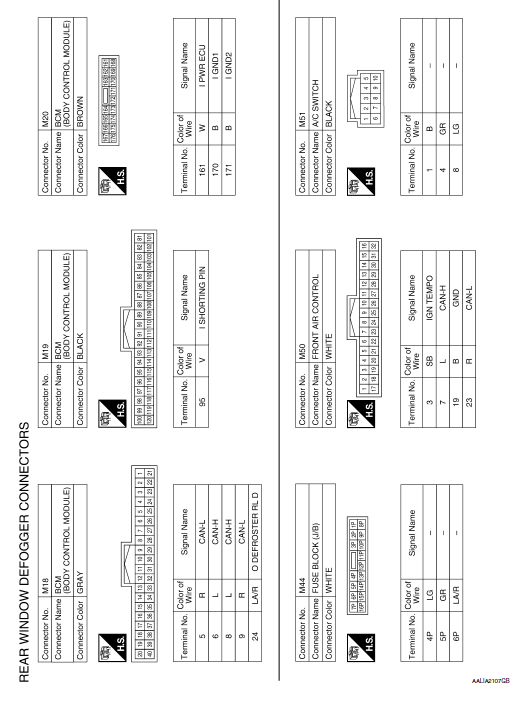

Wiring Diagram

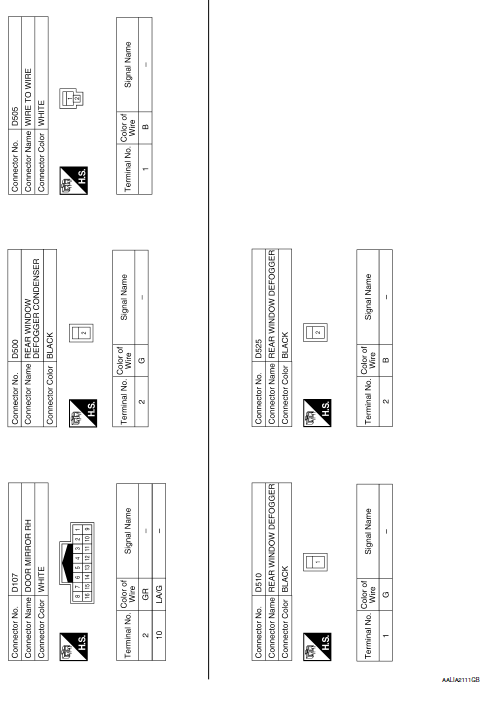

Wiring Diagram

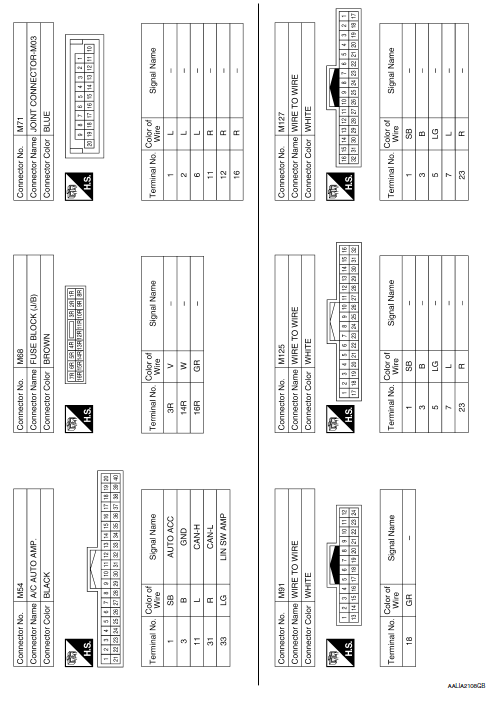

Wiring Diagram

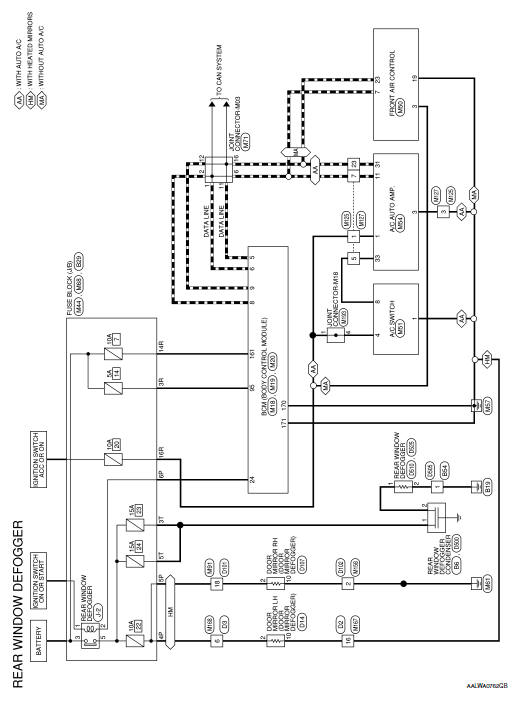

Wiring Diagram

Wiring Diagram
