VENTILATION SYSTEM
System Description
OUTLINE
Automatic A/C
The ventilation system is controlled by the A/C switch assembly. For details of the automatic air conditioner system, refer to HAC-10, "System Description".
Manual A/C
The ventilation system is controlled by the front air control. For details of the manual air conditioner system, refer to HAC-118, "System Description".

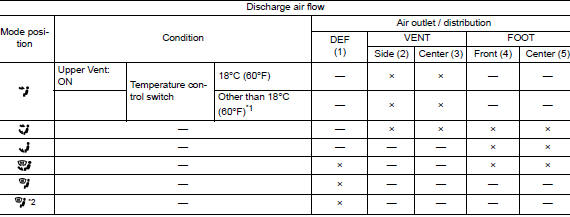

AIR FLOW

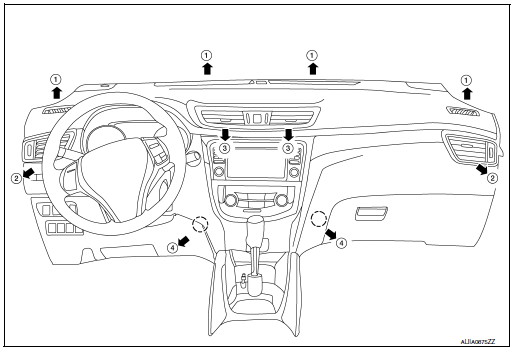

Front

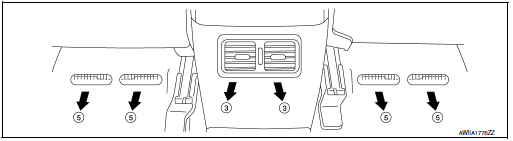

Rear
*1: Air flow is also supplied to front foot until passenger room temperature
stabilizes when temperature setting
is other than 18°C (60°F). At that time, air flowing is the same as 18°C (60°F)
setting.
*2: During automatic defogging control.
Periodic maintenance
IN-CABIN MICROFILTER
Removal and Installation
REMOVAL
Release the tab and remove the in-cabin microfilter cover (1)
from under the RH side of the instrument panel.
