Nissan Rogue Service Manual: System description

Nissan Rogue Service Manual / Engine / Engine Lubrication System / System description

DESCRIPTION

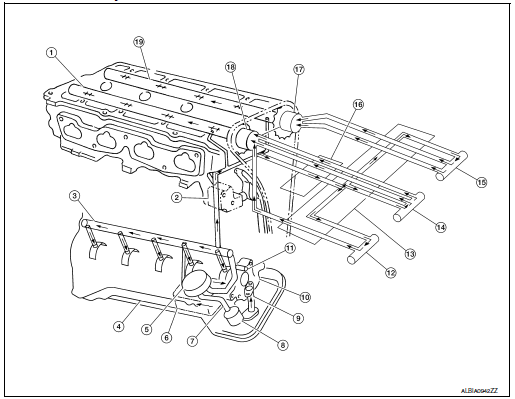

Engine Lubrication System

Engine Lubrication System

  1. Camshaft (INT)
  2.  Chain tensioner
  3. Main gallery
  4.  Oil pan
  5. Oil cooler
  6. Balancer unit
  7.  Oil pan oil gallery
  8. Oil filter (with relief valve)
  9. Oil Strainer
  10.  Oil pump
  11.  Timing chain and balancer unit timing chain oil jet
  12.  Intake valve timing intermediate lockcontrol solenoid valve
  13.  Intake valve timing control cover
  14.  Intake valve timing control solenoid valve
  15.  Exhaust valve timing control solenoid valve
  16.  Front cover
  17.  Exhaust valve timing controller
  18.  Intake valve timing controller
  19.  Camshaft (EXH)

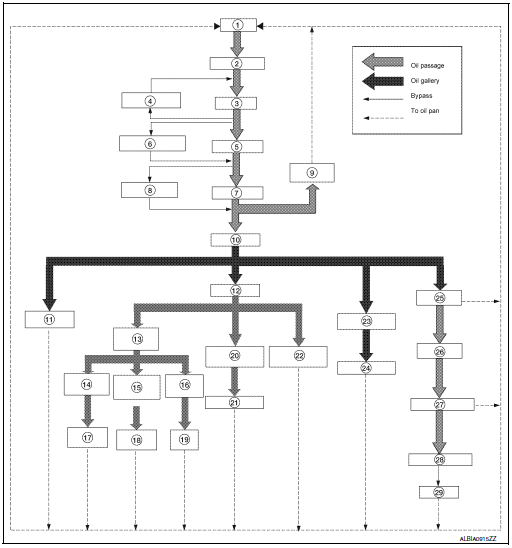

Engine Lubrication System Schematic

Engine Lubrication System Schematic

  1. Oil pan
  2. Oil strainer
  3. Oil pump
  4.  Regulator valve
  5. Oil filter
  6. Relief valve (Built in oil filter)
  7.  Oil cooler
  8. Relief valve
  9. Chain oil jet
  10.  Main gallery
  11.  Piston oil jet
  12.  Cylinder head
  13.  C-VTC oil filter
  14.  C-VTC EXH solenoid valve
  15.  C-VTC intermediate solenoid valve
  16.  C-VTC INT solenoid valve
  17.  C-VTC exhaust
  18.  C-VTC intermediate
  19.  C-VTC intake
  20.  Camshaft journal
  21.  Camshaft
  22.  Chain tensioner
  23.  Balancer housing
  24.  Balancershaft journal
  25.  Main bearing
  26.  Crankshaft
  27.  Connectiong rod bearing
  28.  Connectiong rod
  29.  Piston
