Nissan Rogue Service Manual: Symptom diagnosis

DRIVER ASSISTANCE SYSTEM SYMPTOMS

Symptom Table

LANE DEPARTURE WARNING SYSTEM SYMPTOMS

NOTE: Refer to the following the operation condition of the Lane Departure Warning system.

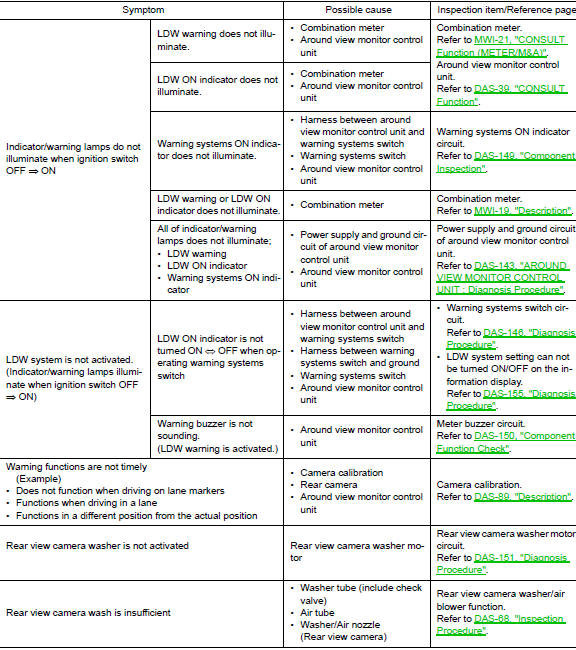

Lane departure warning system symptoms

BLIND SPOT WARNING SYSTEM SYMPTOMS

NOTE: Refer to the following the operation condition of the Blind Spot Warning system.

Blind spot warning system symptoms

MOVING OBJECT DETECTION SYSTEM SYMPTOMS

NOTE: Refer to the following the operation condition of the Moving Object Detection system.

Moving object detection system symptoms

FORWARD COLLISION WARNING SYSTEM SYMPTOMS

NOTE: Refer to the following the operation condition of the Forward Collision Warning system.

Forward collision warning system symptoms

SYSTEM SETTINGS CANNOT BE TURNED ON/OFF IN VEHICLE INFORMATION DISPLAY

Description

The system setting cannot be turned ON/OFF in the combination meter information display using the steering switch.

Diagnosis Procedure

1.CHECK DRIVER ASSISTNCE SYSTEM SETTING

  1.  Ignition On.
  2.  Check that the driver assistance system setting can be turned ON/OFF in the combination meter information display using the steering switch.

Is the inspection result normal? YES >> Inspection End.

NO >> GO TO 2.

2.CHECK STEERING SWITCH CIRCUIT

Check the steering switch. Refer to MWI-69, "Diagnosis Procedure".

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace harness or connector

3.CHECK STEERING SWITCH RESISTANCE

Check the steering switch resistance. Refer to MWI-69, "Component Inspection".

Is the inspection result normal? YES >> Replace combination meter. Refer to MWI-82, "Removal and Installation".

NO >> Replace steering switch. Refer to AV-211, "Removal and Installation".

SWITCH DOES NOT TURN ON / SWITCH DOES NOT TURN OFF

Description

The switch does not turn ON

The switch does not turn OFF

Diagnosis Procedure

1.CHECK WARNING SYSTEM SWITCH CIRCUIT

Check the warning system switch circuit. Refer to DAS-146, "Diagnosis Procedure".

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace harness or connector.

2.CHECK WARNING SYSTEM SWITCH

Check the warning system switch. Refer to DAS-147, "Component Inspection".

Is the inspection result normal? YES >> Replace the around view monitor control unit. Refer to DAS-163, "Removal and Installation".

NO >> Replace the warning system switch. Refer to DAS-164, "Removal and Installation".

NORMAL OPERATING CONDITION

Description

PRECAUTIONS FOR FORWARD COLLISION WARNING (FCW)

PRECAUTIONS FOR LANE DEPARTURE WARNING (LDW)

PRECAUTIONS FOR BLIND SPOT WARNING (BSW)

MOVING OBJECT DETECTION
