TRANSFER OIL
Inspection
TRANSFER OIL LEAKS
Check that transfer oil is not leaking from transfer assembly or around it.
TRANSFER OIL LEVEL
CAUTION: Do not start engine while checking transfer oil level.
- Remove filler plug (1) and gasket.
: Front

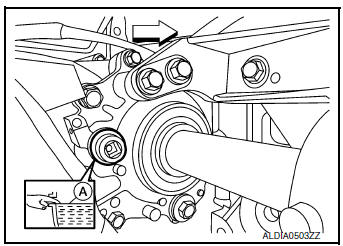

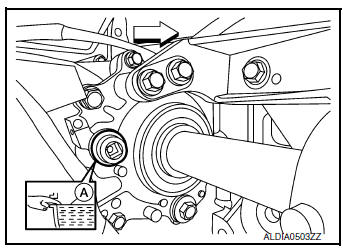

- Transfer oil level (A) should be level with bottom of filler plug hole. Add transfer oil if necessary. Refer to MA-11, "Fluids and Lubricants".
- Set a new gasket onto filler plug, and install it in the transfer and tighten to specified torque. Refer to DLN-89, "Exploded View".
CAUTION: Do not reuse gasket.
Draining
CAUTION: Do not start engine while working.
- Run the vehicle to warm up the transfer unit sufficiently.

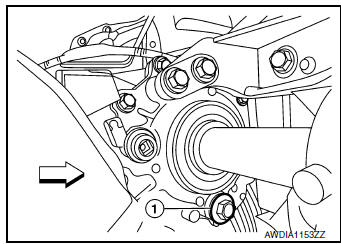

- Stop the engine and remove drain plug (1) and gasket and drain the transfer oil.
: Front
- Set a new gasket onto drain plug, and install it in the transfer and tighten to specified torque. Refer to DLN-89, "Exploded View".
CAUTION: Do not reuse gasket.
Refilling
CAUTION: Do not start engine while checking transfer oil level.
- Remove filler plug (1).
- Fill with new transfer oil to the specified level near the filler plug hole.
: Front
Transfer oil grade and viscosity : Refer to MA-11, "Fluids and Lubricants".
Transfer oil capacity : Refer to DLN-93, "General Specifications".
- Set a new gasket onto filler plug, and install it in the transfer and tighten to specified torque. Refer to DLN- 89, "Exploded View".
CAUTION: Do not reuse gasket.
Symptom diagnosis
HEAVY TIGHT-CORNER BRAKING SYMPTOM OCCURS
Description
Heavy tight-corner braking symptom occurs when the vehicle is driven and the
steering wheel is turned fully to
either side after the engine i ...
Removal and installation
AWD CONTROL UNIT
Exploded View
1 AWD control unit
: Vehicle front
: N·m (kg-m, in-lb)
Removal and Installation
REMOVAL
Remove luggage side lower finisher (LH). Refer to INT-33,
& ...
