Nissan Rogue Service Manual: P0128 thermostat function

Nissan Rogue Service Manual / Engine / Engine Control System / DTC/Circuit diagnosis / P0128 thermostat function

DTC Description

DTC DETECTION LOGIC

Engine coolant temperature has not risen enough to open the thermostat even though the engine has run long enough.

This is due to a leak in the seal or the thermostat being stuck open.

DTC No.	CONSULT screen terms (Trouble diagnosis content)	DTC detecting condi
P0128	THERMSTAT FNCTN [Coolant thermostat (coolant temperature below thermostat regulating temperature)]	The engine coolant temperature does not reach to specified temperature even though the engine has run long enough.

POSSIBLE CAUSE

Thermostat
Leakage from sealing portion of thermostat
Engine coolant temperature sensor

FAIL-SAFE

Not applicable

DTC CONFIRMATION PROCEDURE

NOTE: Never refuel before and during the following procedure.

1.CHECK DTC PRIORITY

If DTC P0128 is displayed with DTC P0300, P0301, P0302, P0303 or P0304, first perform the trouble diagnosis for DTC P0300, P0301, P0302, P0303 or P0304.

Is applicable DTC detected? YES >> Perform diagnosis of applicable. Refer to EC-93, "DTC Index".

NO >> GO TO 2.

2.PRECONDITIONING-1

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.

Turn ignition switch OFF and wait at least 10 seconds.
Turn ignition switch ON.
Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 3.

3.PRECONDITIONING-2

With CONSULT

Turn ignition switch ON.
Check the following conditions:

Ambient temperature	−10°C (14°F) or more
A/C switch	OFF
Blower fan switch	OFF

Select “DATA MONITOR” mode of “ENGINE” using CONSULT.
Check the following conditions:

COOLAN TEMP/S

−10°C – 58°C (14 – 136°F)

Is the condition satisfied? YES >> GO TO 4.

NO >> 1. Satisfy the condition.

2. GO TO 4.

4.PERFORM DTC CONFIRMATION PROCEDURE-1

With CONSULT

Start engine.
Drive the vehicle until the following condition is satisfied.

CAUTION: Always drive vehicle at safe speed.

STEP 1

Drive the vehicle under the conditions instructed below until the difference between “COOLAN TEMP/S” and “FUEL T/TMP SE” becomes at least 26°C (47°F).

COOLAN TEMP/S	66°C (151°F) or less
FUEL T/TMP SE	Less than the value calculated by subtracting 26°C (47°F) from “COOLAN TEMP/S”.*

*: Example

COOLAN TEMP/S	FUEL T/TMP SE
70°C (158°F)	44°C (111°F) or less
65°C (149°F)	39°C (102°F) or less
60°C (140°F)	34°C (93°F) or less

STEP 2

Drive the vehicle at 50 km/h (32 MPH) or more with the difference between “COOLAN TEMP/S” and “FUEL T/TMP SE” maintained at 26°C (47°F) or more.

NOTE: Keep the accelerator pedal as steady as possible during cruising.

STEP 3

Drive the vehicle at 50 km/h (32 MPH) or more until “COOLAN TEMP/S” increases by 6°C (11°F).

NOTE: Keep the accelerator pedal as steady as possible during cruising. Is the condition satisfied? YES >> GO TO 5.

NO >> GO TO 2.

5.PERFORM DTC CONFIRMATION PROCEDURE-2

With CONSULT

Drive the vehicle until the following condition is satisfied.

COOLAN TEMP/S

67°C (153°F) or more

CAUTION: Always drive vehicle at safe speed.

Check 1st trip DTC.

Is 1st trip DTC detected? YES >> Proceed to EC-224, "Diagnosis Procedure".

NO >> INSPECTION END

Diagnosis Procedure

1.CHECK DTC PRIORITY

If DTC P0128 is displayed with DTC P0300, P0301, P0302, P0303 or P0304, first perform the trouble diagnosis for DTC P0300, P0301, P0302, P0303 or P0304.

Is applicable DTC detected? YES >> Perform diagnosis of applicable. Refer to EC-93, "DTC Index".

NO >> GO TO 2.

2.CHECK ENGINE COOLANT TEMPERATURE SENSOR

Check the engine coolant temperature sensor. Refer to EC-225, "Component Inspection".

Is the inspection result normal? YES >> GO TO 3.

NO >> Replace engine coolant temperature sensor. Refer to CO-23, "Exploded View".

3.CHECK THERMOSTAT

Check the thermostat. Refer to CO-21, "Removal and Installation".

Is the inspection result normal? YES >> INSPECTION END

NO >> Replace thermostat.

Component Inspection

1.CHECK ENGINE COOLANT TEMPERATURE SENSOR

Turn ignition switch OFF.
Disconnect engine coolant temperature sensor harness connector.
Remove engine coolant temperature sensor.

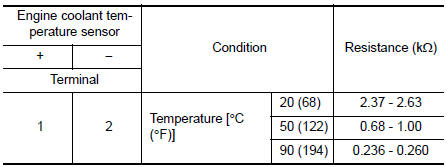

Check resistance between engine coolant temperature sensor terminals by heating with hot water as shown in the figure.

Check engine coolant temperature sensor

Is the inspection result normal? YES >> INSPECTION END

NO >> Replace engine coolant temperature sensor. Refer to CO-23, "Exploded View".
