Switch Name and Function

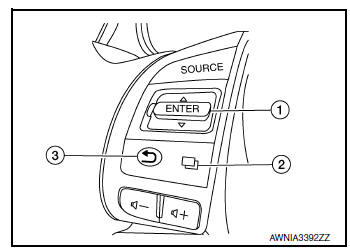

STEERING SWITCH

Steering switch

No.	Switch name	Operation	Description
1	Enter/Up/Down switch	Press	The information display settings can be changed.
2	Display switch
3	Back switch

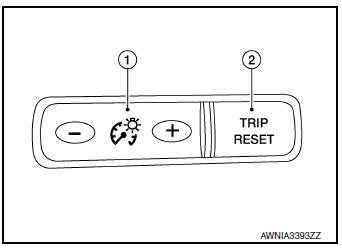

METER CONTROL SWITCH

Meter control switch

No.	Switch name	Operation	Description
1	Illumination control switch	Press	An illuminance level of the back light of the combination meter can be adjusted.
2	Illumination control switch	Press	The trip meter can be switched between A and B Trip meter A/B can be reset by pressing and holding the trip reset switch. A trip computer value displayed on the information display can be reset by pressing and holding the trip reset switch for 1 second or more. All trip computer values can be reset by pressing and holding the trip reset switch for 3 seconds or more.
