Nissan Rogue Service Manual: Main power window and door lock/unlock switch

Reference Value

TERMINAL LAYOUT

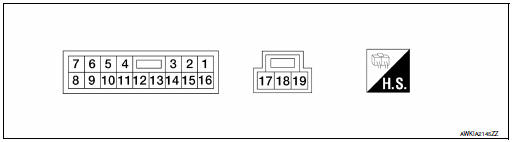

Terminal layout

PHYSICAL VALUES

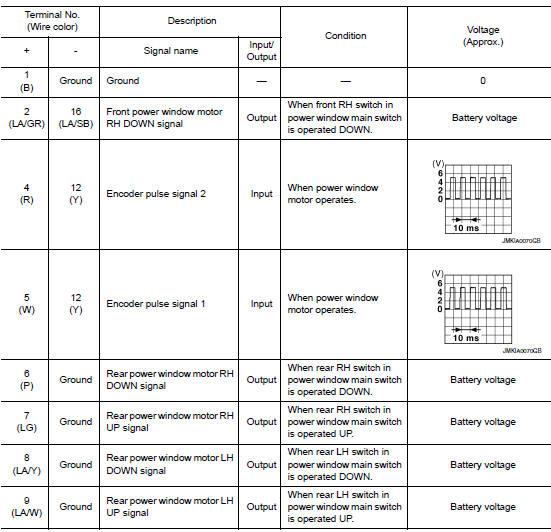

Physical values

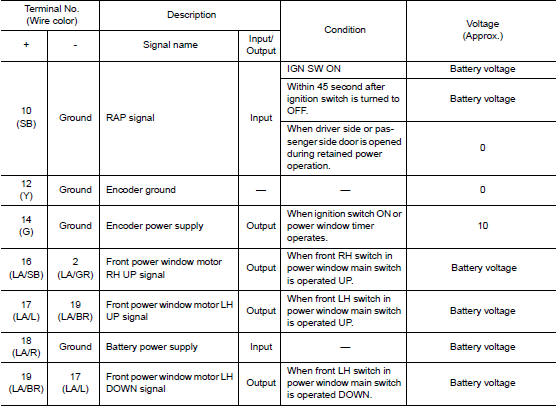

Physical values

BCM (body control module)
List of ECU Reference ...

Wiring diagram
POWER WINDOW SYSTEM Wiring Diagram ...
