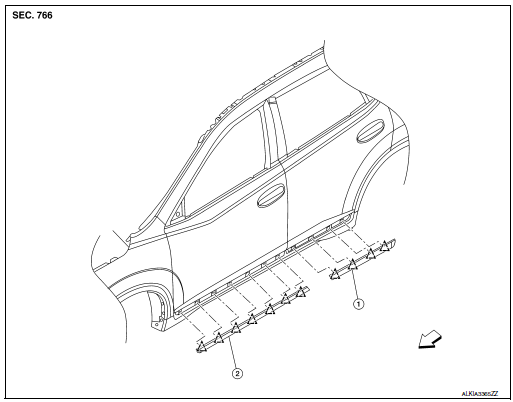

Exploded View

Exploded View

Rear door outside lower molding
Front door outside lower molding

Clip
Front

Removal and Installation

FRONT DOOR OUTSIDE LOWER MOLDING

Removal

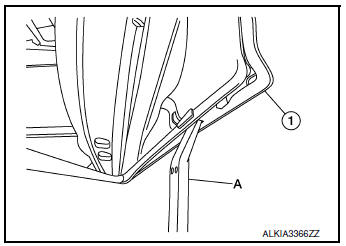

Using a suitable tool (A) release clips from front door outside lower molding (1) starting at the rear and working forward.

CAUTION:

Release the clips slowly and carefully.
Do not pull the front door outside lower molding.

Removal

Remove the front door outside lower molding.

Installation

Installation is in the reverse order of removal.

CAUTION:

Do not reuse double-sided tape, always replace with new tape.
When installing, visually check the front door outside lower molding and clips, replace with new clips if they have been damaged.
When installing front door outside lower molding, make sure clips are attached to the molding. Make sure old clips have all been removed from door.

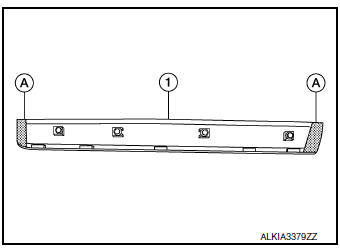

NOTE: Install new double-sided tape (A) to front door outside lower molding as shown.

Installation

REAR DOOR OUTSIDE LOWER MOLDING

Removal

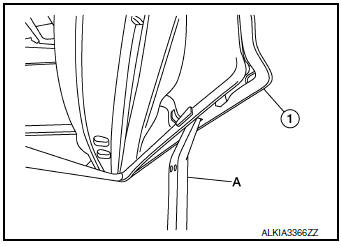

Using a suitable tool (A) release clips from rear door outside lower molding (1) starting at the rear and working forward.

CAUTION:

Release the clips slowly and carefully.
Do not pull the front door outside lower molding.

Removal

Remove the rear door outside lower molding.

Installation

Installation is in the reverse order of removal.

CAUTION:

Do not reuse double-sided tape, always replace with new tape.
When installing, visually check the front door outside lower molding and clips, replace with new clips if they have been damaged.
When installing front door outside lower molding, make sure clips are attached to the molding. Make sure old clips have all been removed from door.

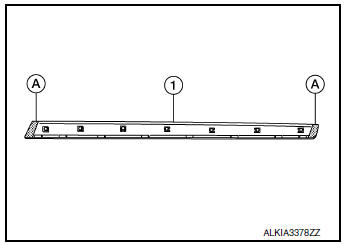

NOTE: Install new double-sided tape (A) to front door outside lower molding as shown.

Installation
