Nissan Rogue Service Manual: Door mirror rear finisher
Removal and Installation
REMOVAL

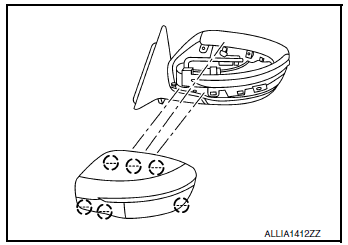

- Beginning at the top of door mirror rear finisher and working
around, use a suitable tool to release the pawls and remove
door mirror rear finisher.
: Pawl
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: After installation, visually check that all the pawls are securely engaged.
