EXTERIOR LIGHTING SYSTEM SYMPTOMS

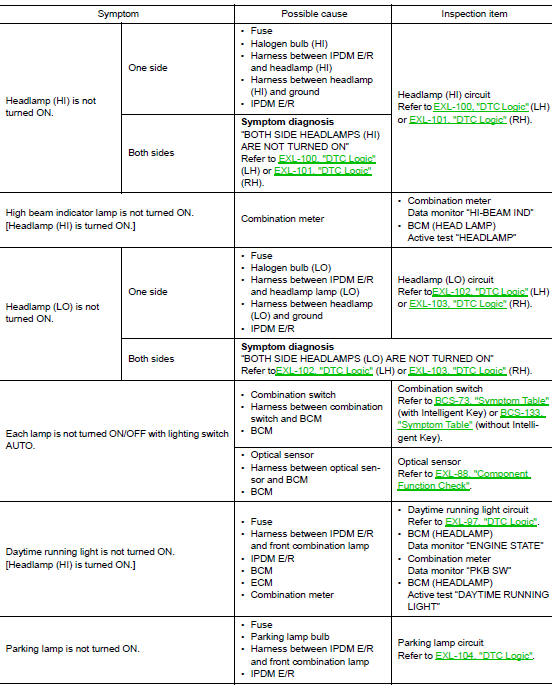

Symptom Table

CAUTION: Perform the self-diagnosis with CONSULT before the symptom diagnosis. Perform the trouble diagnosis if any DTC is detected.

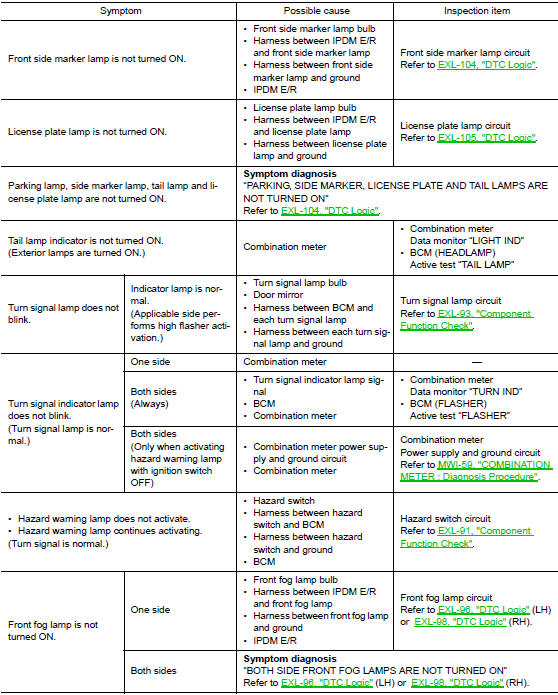

Symptom Table

NORMAL OPERATING CONDITION

Description

AUTO LIGHT SYSTEM

The headlamp may not be turned ON/OFF immediately after passing dark area or bright area (short tunnel, sky bridge, shadowed area, etc.) while using the auto light system. This is caused by for the control difference.

This is normal.

BOTH SIDE HEADLAMPS (HI) ARE NOT TURNED ON

Description

Both side headlamps (HI) are not turned ON when setting to the lighting switch HI or PASS.

Diagnosis Procedure

1.COMBINATION SWITCH INSPECTION

Check combination switch. Refer to BCS-73, "Symptom Table" (with Intelligent Key system) or BCS-133, "Symptom Table" (without Intelligent Key system).

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace the malfunctioning part.

2.CHECK HEADLAMP (HI) REQUEST SIGNAL INPUT

CONSULT DATA MONITOR

Select “HEADLAMP (HI)”of IPDM E/R data monitor item.
With operating the lighting switch, check the monitor status.

Check headlamp (hi) request signal input

Is the inspection result normal? YES >> GO TO 3.

NO >> Replace BCM. Refer to BCS-75, "Removal and Installation" (with Intelligent Key system) or BCS- 135, "Removal and Installation" (without Intelligent Key system).

3.HEADLAMP (HI) CIRCUIT INSPECTION

Check headlamp (HI) circuit. Refer to EXL-100, "DTC Logic" (LH) or EXL-101, "DTC Logic" (RH).

Is the inspection result normal? YES >> Refer to GI-41, "Intermittent Incident".

NO >> Repair or replace the malfunctioning part.

BOTH SIDE HEADLAMPS (LO) ARE NOT TURNED ON

Description

Both side headlamps (LO) are not turned ON in any condition.

Diagnosis Procedure

1.CHECK COMBINATION SWITCH

Check combination switch. Refer to BCS-73, "Symptom Table" ( with Intelligent Key) or BCS-133, "Symptom Table" ( without Intelligent Key).

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace the malfunctioning part.

2.CHECK HEADLAMP (LO) REQUEST SIGNAL INPUT

CONSULT DATA MONITOR

Select “HEADLAMP (LO)”of IPDM E/R data monitor item.
With operating the lighting switch, check the monitor status.

Check headlamp (lo) request signal input

Is the inspection result normal? YES >> GO TO 3.

NO >> Replace BCM. Refer to BCS-75, "Removal and Installation" (with Intelligent Key) or BCS-135, "Removal and Installation" (without Intelligent Key).

3.HEADLAMP (LO) CIRCUIT INSPECTION

Check headlamp (LO) circuit. Refer to EXL-102, "DTC Logic" (LH) or EXL-103, "DTC Logic" (RH).

Is the inspection result normal? YES >> Refer to GI-41, "Intermittent Incident".

NO >> Repair or replace the malfunctioning part.

PARKING, LICENSE PLATE, SIDE MARKER AND TAIL LAMPS ARE NOT TURNED ON

Description

The parking, license plate, side marker, tail lamps and each illumination are not turned ON in any condition.

Diagnosis Procedure

1.COMBINATION SWITCH INSPECTION

Check combination switch. Refer to BCS-73, "Symptom Table" (with Intelligent Key) or BCS-133, "Symptom Table" (without Intelligent Key).

Is the combination switch normal? YES >> GO TO 2.

NO >> Repair or replace the malfunctioning part.

2.CHECK TAIL LAMP REQUEST SIGNAL INPUT

CONSULT DATA MONITOR

Select “TAIL LAMP” of IPDM E/R data monitor item.
With operating the lighting switch, check the monitor status.

Check tail lamp request signal input

Is the inspection result normal? YES >> Replace IPDM E/R. Refer to PCS-35, "Removal and Installation".

NO >> Replace BCM. Refer to BCS-75, "Removal and Installation" (with Intelligent Key) or BCS-135, "Removal and Installation" (without Intelligent Key).

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

Description

The front fog lamps are not turned ON in any condition.

Diagnosis Procedure

1.CHECK COMBINATION SWITCH

Check combination switch. Refer to BCS-73, "Symptom Table" (with Intelligent Key) or BCS-133, "Symptom Table" (without Intelligent Key).

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace the malfunctioning part.

2.CHECK FRONT FOG LAMP REQUEST SIGNAL INPUT

CONSULT DATA MONITOR

Select “FRONT FOG LAMP REQ” of IPDM E/R data monitor item.
With operating the front fog lamp switch, check the monitor status.

Check front fog lamp request signal input

Is the item status normal? YES >> Replace IPDM E/R. Refer to PCS-35, "Removal and Installation".

NO >> Replace BCM. Refer to BCS-75, "Removal and Installation" (with Intelligent Key) or BCS-135, "Removal and Installation" (without Intelligent Key).
