Nissan Rogue Owners Manual: Control panel buttons — color screen with Navigation System (if so equipped)

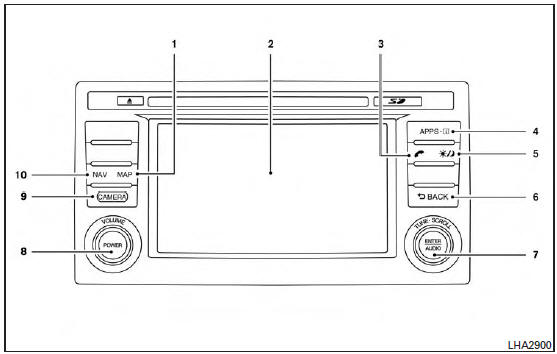

Control panel buttons — color screen with Navigation System
- MAP button*
- Display screen
-
button** -
button -
(brightness control)
button -
BACK button - ENTER / AUDIO button / TUNE / SCROLL knob
- POWER button / VOLUME control knob
- CAMERA button
- NAV button*
* For additional information, refer to the separate Navigation System Owner’s Manual regarding the Navigation system control buttons .
** For additional information, refer to “Bluetooth® Hands-Free Phone System with Navigation System” in this section regarding the Bluetooth® Hands-Free Phone System control button.
When you use this system, make sure the engine is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.
Reference symbols:
“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can be
selected by touching the screen.
Monitor, climate, audio, phone and voice recognition systems
WARNING
Positioning of the heating or air conditioning
controls and display controls
should not be done while driving in order
that full attention may be given to
the ...
How to use the touch-screen
CAUTION
The glass display screen may break if it
is hit with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
& ...
